P1800ton

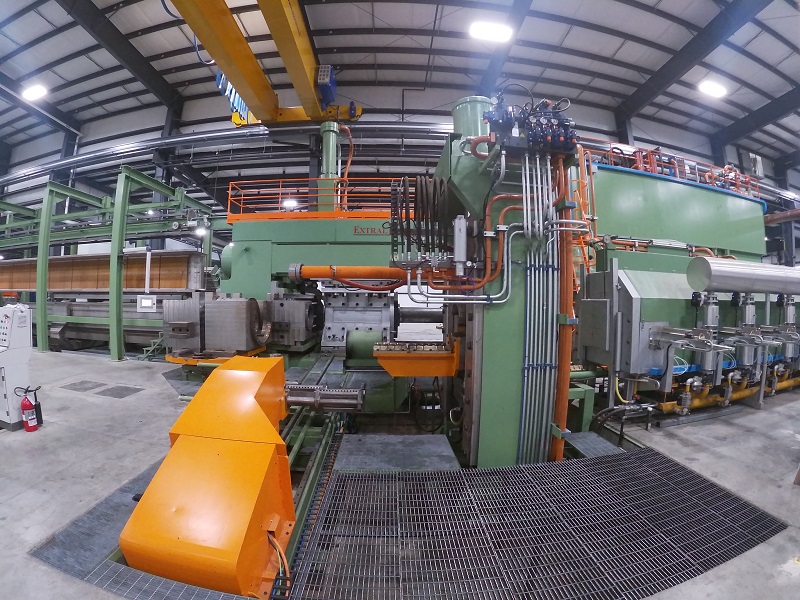

Zarbana's complete extrusion line 1800MTOn using 7” billets.
Designed to extrude profiles starting from 0.034 with a maximum length of 55 feet. Equipped with an intensive cooling system with a maximum capacity of 300 mc/h, it can deliver extrusions with superior mechanical characteristics in various alloys.

Specifications: * 3700 PSI, * Short stroke, front load, * 7" billet /max length 35.5", * Dead cycle time 13 seconds w/burp 14 seconds, * Dual puller, * Handling system has all Kevlar belts, * Stretcher 44 M ton - maunal or auto, * Run-out table - 178' *



P2500ton




Zarbana's complete extrusion line 2500MTOn using 9” billets.
Designed to extrude profiles up to 115 lbs/ft with a maximum length of 55 feet. Equipped with an intensive cooling system with a maximum capacity of 300 mc/h, it can deliver extrusions with superior mechanical characteristics in various alloys.

Specifications: * 3700 PSI, * Short stroke, front load, * 9" billet /max length 44", * Dead cycle time 13 seconds w/burp 14 seconds, * Dual puller, * Handling system has all Kevlar belts, * Stretcher 80 M ton - maunal or auto, * Run-out table - 203' *
